Art.Nr.:

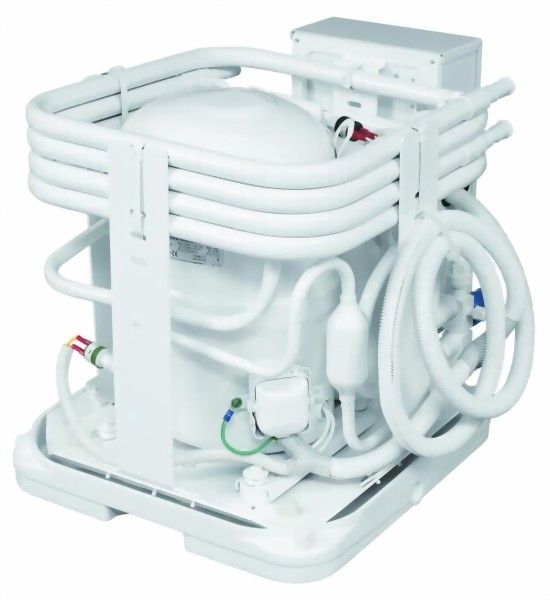

Cruisair Emerald Condenser EQ24 Compressor/condenser unit with 24000 Btu/h koel capaciteit
Cruisair Emerald Condenser EQ24 Compressor/condenser unit with 24000 Btu/h koel capaciteit
Cruisair Emerald Condenser EQ24 Compressor/condenser unit with 24000 Btu/h koel capaciteit
| ||||
Compressor/condenser unit with 24000 Btu/h cooling capacity | ||||
Koelvermogen: | 24000 Btu/h / 7034 watt | |||
Ingangsspanning: | 230 volts AC / 60 Hz / 1 phase or 230 volts AC / 60 Hz / 3 phases or 240 volts AC / 50 Hz / 1 phase or 380 volts AC / 50 Hz / 3 phases or 460 volts AC / 60 Hz / 3 phases | |||
Stroomopname (koelen/verwarmen): |
230 volts (1 phase) model: 6.3 A / 7.8 A 230 volts (3 phases) model: 4.9 A / 6.6 A 240 volts model: 6.8 A / 8.6 A 380 volts model: 2.7 A / 3.6 A 460 volts model: 2.4 A / 3.2 A | |||
Opstartstroom: | 230 volts (1 phase) model: 43.0 A 230 volts (3 phases) model: 55.0 A 240 volts model: 48,0 A 380 volts model: 28.0 A 460 volts model: 22.4 A | |||
Vereiste afzekering: | 230 volts (1 phase) model: min. 20 A, max. 30 A, delay fuse 230 volts (3 phases) model: min. 15 A, max. 25 A, delay fuse 240 volts model: min. 20 A, max. 32 A, delay fuse 380 volts model: min. 10 A, max. 15 A, delay fuse 460 volts model: min. 10 A, max. 15 A, delay fuse | |||
Koudemiddel: | Green gas | |||
Discharge connection: | 3/8" | |||
Suction connection: | 5/8" | |||
Afmeting (BxHxD): | 406 x 457 x 406 mm (without electric box) 406 x 457 x 478 mm (with electric box) | |||
Gewicht: | 50,0 kg | |||
Keurmerk: | CE | |||
Opmerking: | Dit product is verkrijgbaar in verschillende voltages en uitvoeringen. | |||
Product: | Emerald Condenser EQ24 | |||
Art.nr.: | CA-EQ24 | |||
