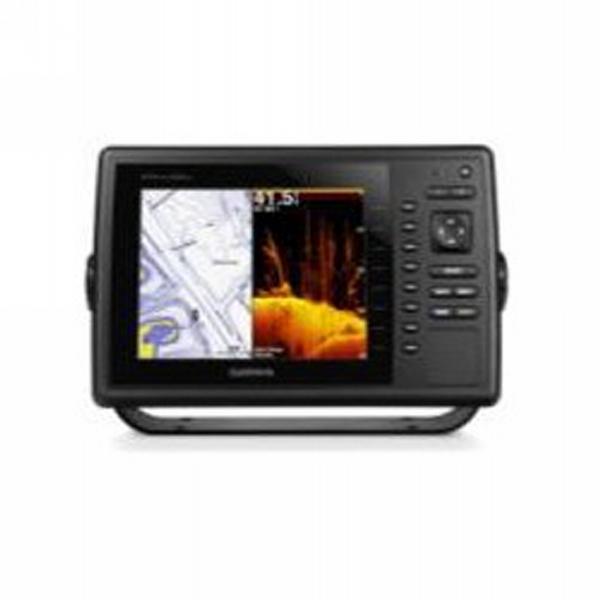

GARMIN GPSMAP 820 8 INCH CHART PLOTTER
The colour 8” and 10” GPSMAP 800 and GPSMAP 1000 series include keyed chartplotters plus chartplotter/sonar combos for cruising, sailing or fishing. The chartplotter/sonar combo units have built-in Garmin 1kW sonar, CHIRP, and DownVü™ scanning sonar with CHIRP technology.
- NEW- Built-in Garmin HD-ID™ and DownVü scanning sonar with CHIRP technology for a nearly photographic view of fish and structure under the boat (xs versions only)1 Add a compatible CHIRP transducer (sold separately) for crystal-clear sonar images, remarkable target separation and resolution at extraordinary depths – and you can dial into specific frequencies to target certain species of sport fish (xs versions only) 1
- NEW- Supports SideVü and DownVü with CHIRP scanning sonar technology (requires optional GCV™ 10)
- NEW- Select networking capabilities – share features with other compatible GPSMAP units such as radar, GCV 10 DownVü and SideVü sonar, supplemental maps, and user data such as waypoints, routes, and tracks
- NEW- Optional maps can be shared with multiple networked Garmin displays on the boat
- NEW- Supported sailing features include laylines, enhanced wind rose, heading and course over ground lines, and true wind data fields
- NEW- Garmin Helm™ support for chartplotter view and control capability via iPhone® or iPad®
- NEW- Add any Garmin marine GMR series radar for enhanced situational awareness
- Supports optional 50/200kHz transducers to optimize performance in saltwater
- 8-inch (800 series) and 10-inch (1000 series) colour SVGA display with keyed user-interface
- Transmit power (RMS / Peak to Peak): 1kW / 8,000W; CHIRP: 600W / 4800W (combo versions only)
- 10Hz GPS – (GPS/GLONASS) provides position and heading updates 10 times per second
- Compatible with BlueChart® g2, BlueChart® g2 Vision® and LakeVü HD Ultra maps (sold separately)
- NMEA 2000® support for autopilot capability and engine data
- Sonar recording and playback using HomePort™ marine planning software (sold separately)
- Wirelessly connect to Apple® mobile devices for BlueChart Mobile – Plan and view routes on your iPad®, iPhone® or iPod® then wirelessly transfer them to your networked Garmin chartplotter.
- Two SD™ data card slots for gigabytes of storage
- Flat, flush and bail mounting options
Includes:
- GPSMAP 820 with Worldwide basemap
- power/data cable
- bail mount
- flush mount
- protective cover
- and documentation
