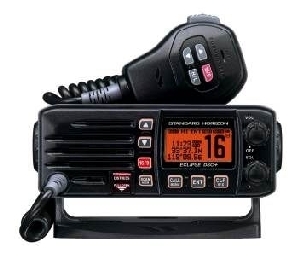

Affordable Ultra Compact Class D Fixed Mount VHF Radio
Designed with an advacnce die-cast chassis makes this full functioning 25Watt VHF rado the perfect choice for serious power and sail sailors alike.
Channel Names and GPS Repeating
All the information you need right at your fingertips. Customizable channel naming allows you to easily change the channel name for greater ease of use and better channel recognition. Position, date and time are also displayed on the radio screen are displayed when interfaced with a GPS receiver.
Advanced Features
Large Easy to read LCD which displays LAT/LON or channel name, programmable scan, Priority Scan and Dual Watch.
Digital Selective Calling
Distress, All Ships, Individual, Position Request and Position Reporting with NMEA 0183 in/out to your favourite GPS chart plotter.
Submersible JIS7 / IPX7 ( 1M for 30 minutes)
Seperate Dedicated Channel 70 receiver for DSC signalling
GPS position and Time shown on a Dot Matrix display ( reqs connection to GPS receiver)
DSC Distress, Individual, Urgency, Safet, Position Report and Request Functions
Programmable Scan, Priority Scan and Dual Watch
NMEA in and output connections to a compatible GPS chart plottere.
Microphone controls for Channel Selection, High/Low Power and fast Access to Ch16/9
ATIS mode for use on Inland Waterways under RAINWAT agreement
Available in Two Colours Black or White with matching speaker mic.
Specifications
GENERAL
Input Voltage12.0V DC +30%, -10% ( 10.8V - 15.6V
Current DrainStandby: 0.3A
Receive: 1.0A
Transmit: 5.5A (Hi); 1.5A ( Lo)
Overall Dimensions155W * 60H * 170D mm
Flush Mount Dimentions131W * 51H * 170D mm
Weight920g
TRANSMITTER
RF Output25W (Hi); 1W (Lo)
Conducted Spurious EmissionsLess than 0.25uV
Frequency Stability+/- 1.5KHz ( -15degC to +55degC
FM Hum and Noise50dB
RECEIVER
Sensitivity12dB SINAD: 0.25uV
Selectivity70dB / Spurious and Image Rejection (Typical)
70dB / Intermodulation and Rejection at 20dB
Audio Output4.5W
DSC FormatITU-R M.493-11
NMEA Data In/OutOutput: DSC and DSE
Input: GLL, GSC, RMC and GNS
Standard Horizon reserves the right to make changes and enhancements to products at our discresion.
Current specifications are therefore subject to change without notice.
